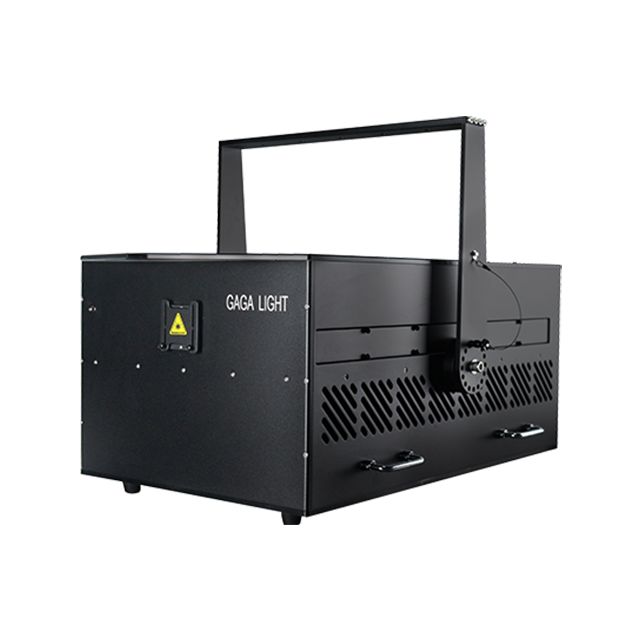

The GAGALIGHT's RGB100w laser light has a beam diameter of about 12 mm and beam divergence of only 1.3 mrad. Guaranteed output power at aperture is 100'000mW. 30'000 mW / 638 nm (red), 30'000 mW / 520 nm (green), 40'000 mW / 450 nm (blue). Fast scanners work at a speed of 35 kpps@8°ILDA. |
Total Power typical: | 100'000 mw |
Guaranteed power: | 100'000 mw |
Power Red: | 30000mw / 638nm |
Power Green: | 300000mw / 520nm |
Power Blue: | 40000mw / 450nm |
Beam Specifications: | ca. 12 mm / 1.3 mrad |
Laser Sources: | pure diode |
Laser Class: | 4 |
Operation Modes: | stand-alone, sound-to-light, DMX, ILDA, Master-Slave |
Scanner: | galvo system, 35 kpps@8° |
Scan Angle max.: | 60° or 80° |
Basic Patterns: | ca. 200 (layers, tunnels, fences, waves, etc.) |
Accessories: | power cable |
Power Supply: | 85V - 250 V AC ; 50/60Hz |
Power Consumption: | 1000w |
Dimensions: | 75 * 45 * 35cm ( exinc. handle) |
Weight: | 80kg |
