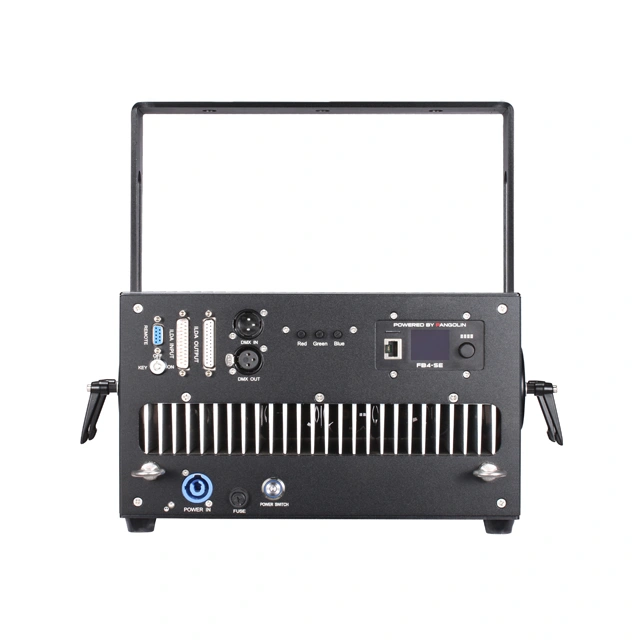

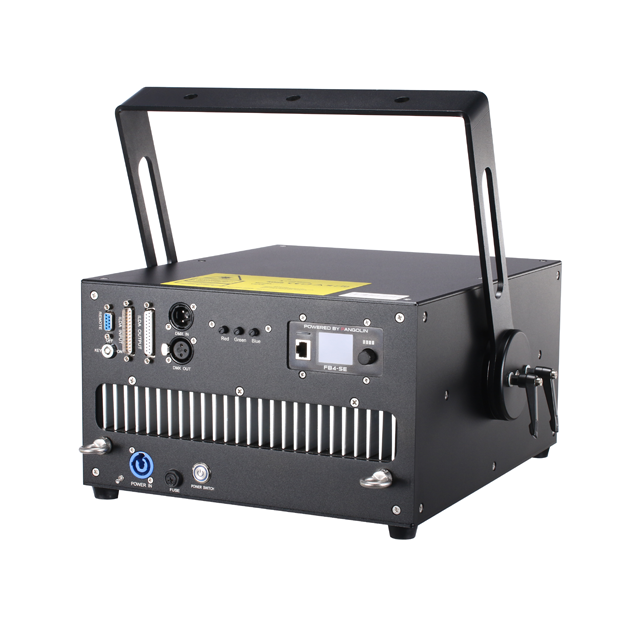

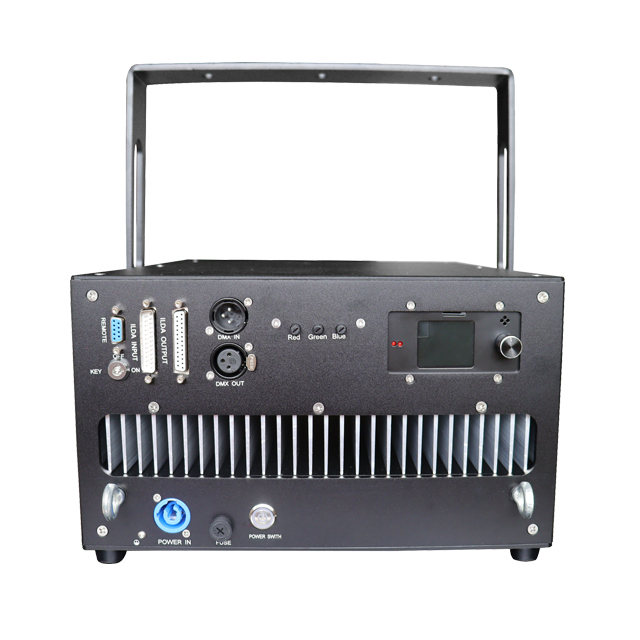

| The GAGALIGHT's RGB20w show laser light is completely equipped with diodes and has a good white balance, with linear color fading behaviour and high visibility. Advantages of the GAGALIGHT's RGB20w laser light are: a low-cost yet powerful solution for power demanding laser applications great for large nightclubs, big stages, concerts and festivals brilliant colors with great linear color fading behavior ideal for long distance beam shows and basic graphics projections The GAGALIGHT's RGB20w laser light has a beam diameter of about 6.1 mm and beam divergence of only 1.4 mrad. Guaranteed output power at aperture is 20'000mW. 6'000 mW / 638 nm (red), 6'000 mW / 520 nm (green), 8'000 mW / 450 nm (blue). Fast scanners work at a speed of 35 kpps@8°ILDA and can do a max. scan angle of 40°. The complete projector is built with Sealed Housing Technology and is cooled through the external cooling fins (bottom part). Thus the maintenance effort is kept very low. The show laser has an internal PSU for easy handling. At the back of the unit there are trim pots for color settings, so the color balance can be quickly adjusted. The X- / Y-axis offset can also be set by trim pots. Additionally the Scan Safety can be set at the back side of the laser system. |
| Model Number: | GA-A5-W20000s |
| Total Power typical: | 20'000 mw |
| Guaranteed power: | 20'000 mw |
| Power Red: | 6000mw / 638nm |
| Power Green: | 6000mw / 520nm |
| Power Blue: | 8000mw / 450nm |
| Beam Specifications: | ca. 6.1 mm / 1.4 mrad |
| Laser Sources: | pure diode |
| Laser Class: | 4 |
| Operation Modes: | stand-alone, sound-to-light, DMX, ILDA, Master-Slave |
| Scanner: | galvo system, 35 kpps@8° |
| Scan Angle max.: | 60° or 80° |
| Basic Patterns: | ca. 200 (layers, tunnels, fences, waves, etc.) |
| Accessories: | power cable, manual,interlock connector, key |
| Power Supply: | 85V - 250 V AC ; 50/60Hz |
| Power Consumption: | 750w |
| Dimensions: | 37 * 31 * 20cm ( exinc. handle) |
| Weight: | 18kg |
| 1 step: package include folow items: ·〉rgb20w laser light x 1 ·〉power wire x 1 ·〉user manual x 1 ·〉interlock connector x 1 ·〉key x 1 |
 |
| 2 step: pack by foam |
|
| 3 step: put it in one fly case or carton box (1in1) |
|
| 4 step: fly case package size: 58 x 55 x 52cm gross weight: 46kg |
| GAGALight's products are passed CE,ROHS,FCC,FDA,TUV. The GAGALIGHT also passed ISO9001 Quality Managerment System. |
|
 |
 |
 |
 |
 |
 |
 |
|
