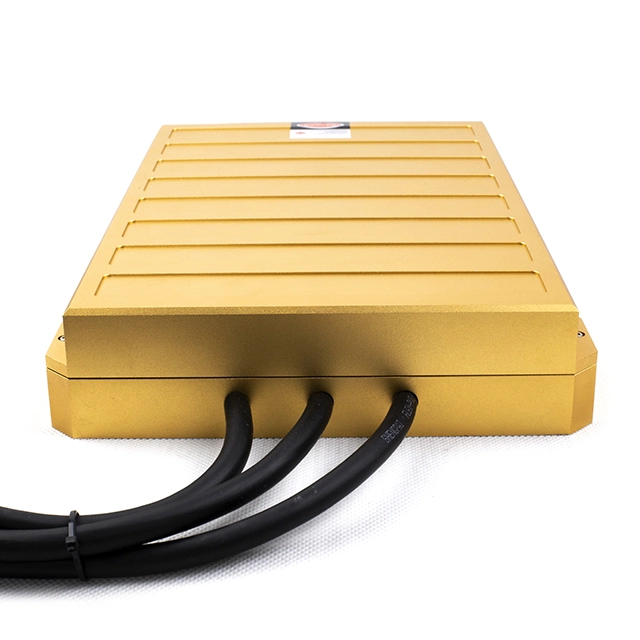

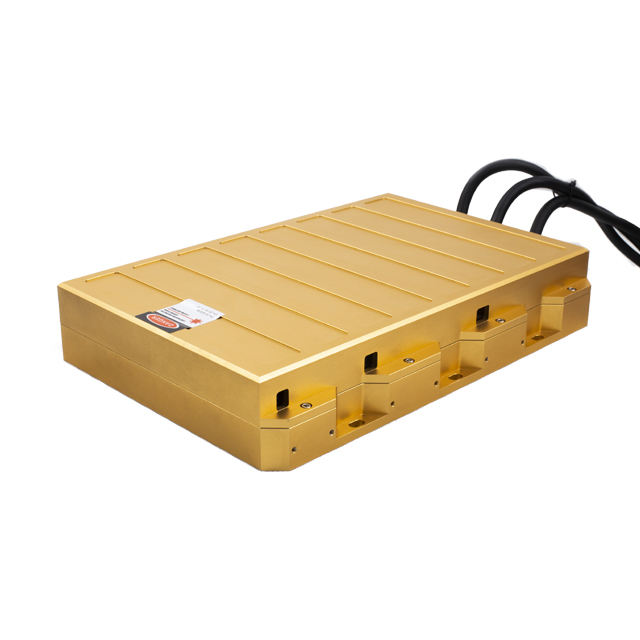

| The GAGA's RGB30w laser module is with outside adjustable 3D holder, so you do not need to open the lid of module when there is any light move away. It is easy and convenient. The red source at 638nm has an output power of 9000mw; the green source at 520nm has an output power of 10000mw; the blue source at 450nm has an output power of 11000mw. |
| Produce name: | RGB30w laser module |
| Guaranteed power: | 30'800 mw |
| Power Red: | 9000mw / 638nm |
| Power Green: | 10000mw / 520nm |
| Power Blue: | 11000mw / 450nm |
| Beam Specifications: | ca. 4 mm x 6.5mm / 1.3 mrad |
| Input voltage: | 24V |
| Dimensions: | 288 * 200 * 50mm ( exinc. driver) |
| Weight: | 10kg ( Inc. the driver and power supply) |

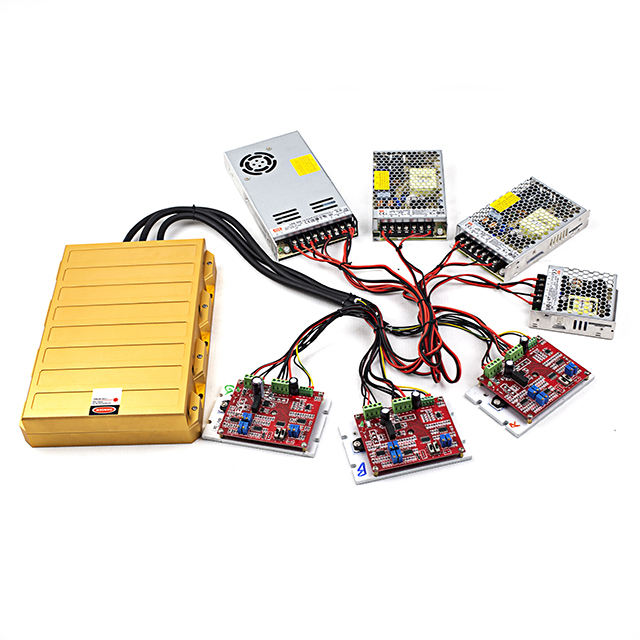

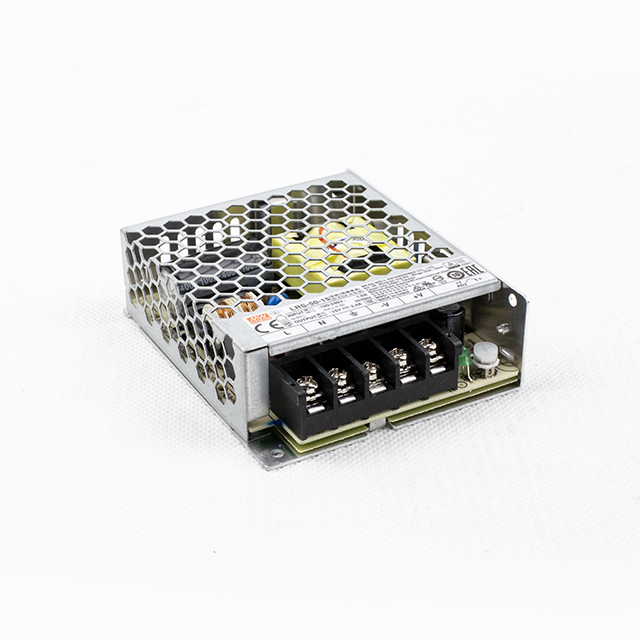

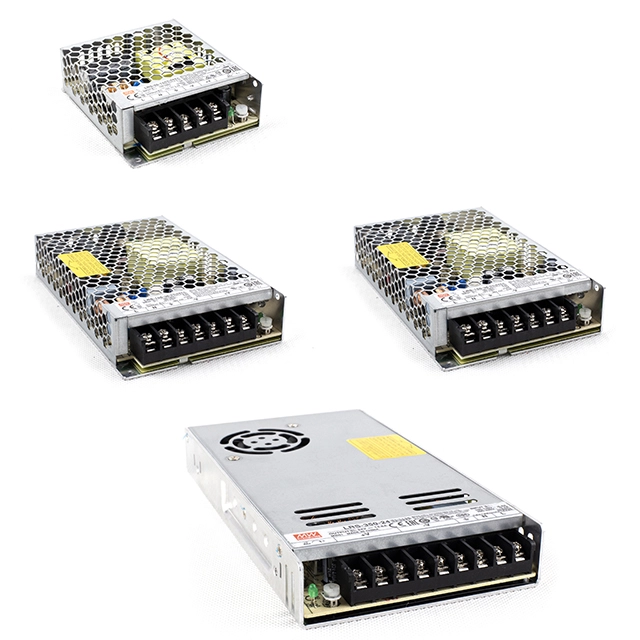

| 1 step: package include folow items: ·〉rgb30w laser module x 1 ·〉power supply x 4 ·〉driver x 3 |
|
| 2 step: pack by foam |
|
| 3 step: put it in one carton box (1in1) |
|
| 4 step: carton package size: gross weight: 10.0 KG |
Use Manual.pdf| GAGALight's products are passed CE,ROHS,FCC,FDA,TUV. The GAGALIGHT also passed ISO9001 Quality Managerment System. |
|
 |
 |
 |
 |
 |
 |
 |
|
