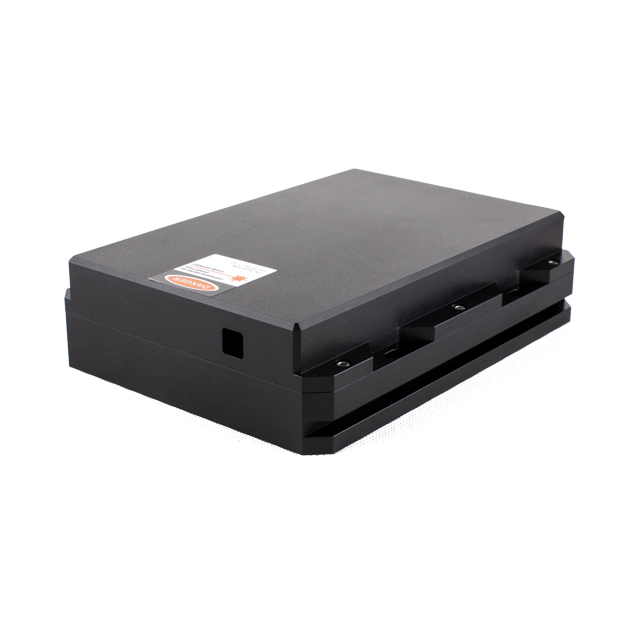

| The GAGA's RGB10w laser module is with compact design,dustproof. The red source at 638nm has an output power of 3000mw; the green source at 520nm has an output power of 3000mw; the blue source at 450nm has an output power of 4000mw. |
| Produce name: | RGB10w laser module |
| Guaranteed power: | 10'800 mw |
| Power Red: | 3000mw / 638nm |
| Power Green: | 3000mw / 520nm |
| Power Blue: | 4000mw / 450nm |
| Beam Specifications: | ca. 6 mm x 6mm / 1.3 mrad |
| Input voltage: | 24V |
| Dimensions: | 186 * 140 * 48mm ( exinc. driver) |
| Weight: | 3kg ( Inc. the driver and power supply) |

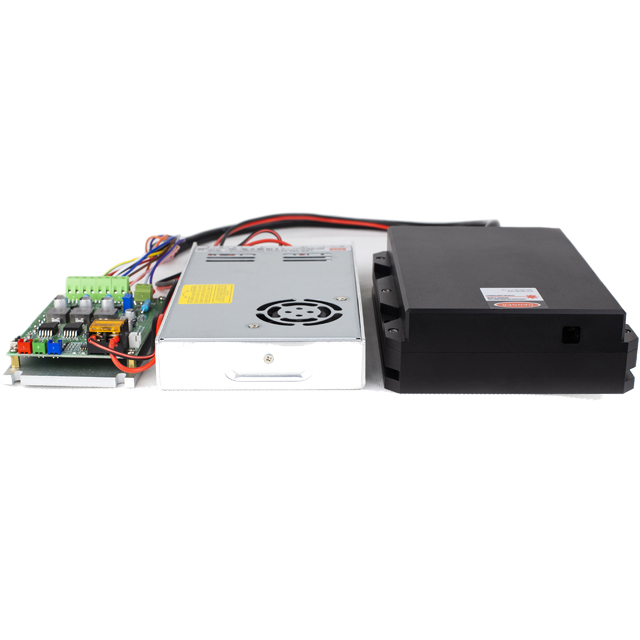

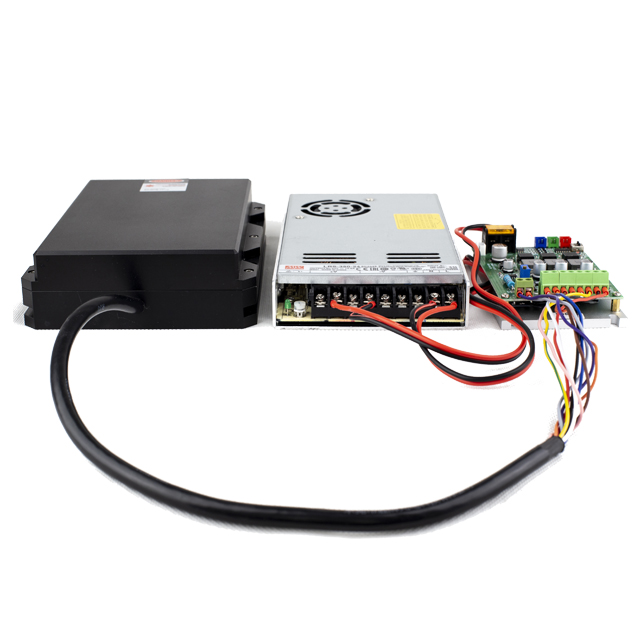

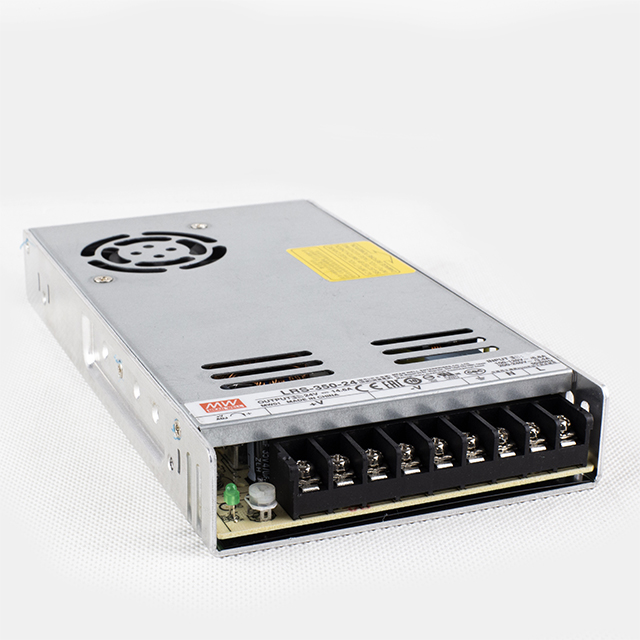

| 1 step: package include folow items: ·〉rgb10w laser module x 1 ·〉power supply x 1 ·〉driver x 1 |
|
| 2 step: pack by foam |
|
| 3 step: put it in one carton box (1in1) |
|
| 4 step: carton package size: gross weight: 5.0 KG |
Use Manual.pdf| GAGALight's products are passed CE,ROHS,FCC,FDA,TUV. The GAGALIGHT also passed ISO9001 Quality Managerment System. |
|
 |
 |
 |
 |
 |
 |
 |
|
